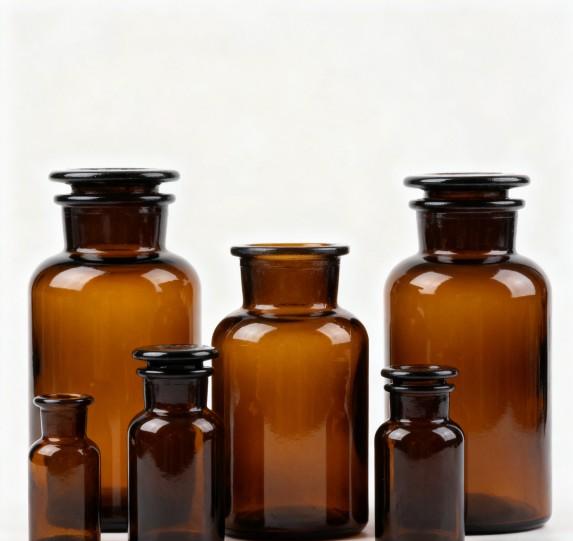

Anti-Drip Amber Reagent Bottles | Precision Pouring & Safety

Amber glass reagent bottles eliminate the risk of chemical cross-contamination and liquid wastage during dispensing by utilizing an integrated thermoplastic pouring ring and a precision-engineered “no-drip” lip. This design ensures that every milliliter of high-value cosmetic active or volatile reagent is transferred cleanly, preventing corrosive liquids from damaging external labels or contaminating the storage environment.

The Problem of Capillary Action and Surface Tension

In many industrial and laboratory settings, the most common source of mess and inaccuracy is the “drip-back” effect. When a liquid is poured from a standard glass bottle, surface tension and capillary action often pull a small amount of the fluid down the side of the container.

For users of a borosil reagent bottle, this isn’t just a matter of tidiness—it is a matter of safety and purity. If an amber reagent bottle contains a concentrated essential oil, an acid, or a light-sensitive serum, a single drop running down the side can:

1. Dissolve the adhesive on the product label, leading to misidentification.
2. Contaminate the workspace or the user’s gloves.
3. Oxidize on the outer surface of the glass, creating a tacky residue that attracts dust and bacteria.

Anatomy of the Anti-Drip System

Modern amber glass reagent bottle engineering solves this through a two-part physical barrier.

• The Fire-Polished Rim: The glass opening is subjected to a secondary heating process that rounds and smooths the edge to a microscopic degree. This reduces the “catch” points where liquid might cling.
• The PP/ETFE Pouring Ring: A detachable ring is snapped onto the GL45 neck finish. This ring features a sharp, outward-angled flange. Because the liquid has less affinity for the plastic polymer than for the glass, the sharp angle “breaks” the surface tension of the liquid, forcing it to detach cleanly and drop vertically into the receiving vessel.

Performance Under Pressure: Vacuum and Heat Stability

One of the most specialized amber reagent bottle uses involves vacuum filtration or pressure-assisted dispensing. In these scenarios, the bottle is subjected to “Hoop Stress”—a physical force that pushes outward or pulls inward on the walls of the container.

Unlike standard soda-lime containers, borosil reagent bottle walls are manufactured with a uniform thickness (typically 2.0 mm to 3.5 mm depending on size) using an automated blow-molding process. This ensures there are no “thin spots” that could implode under vacuum.

Comparative Strength and Pressure Resistance

Stress Type	Borosilicate 3.3 Reagent Bottle	Soda-Lime Glass Bottle	Impact on Usage
Max Internal Pressure	1.5 – 2.0 Bar	0.5 – 0.8 Bar	Borosilicate is safer for pressurized dispensing systems.
Vacuum Resistance	Full Vacuum (10⁻³ mbar)	Not Recommended	Essential for rotary evaporator and filtration setups.
Impact Resistance	High (High elastic modulus)	Moderate	Higher durability during transport and handling.
Autoclave Limit	121°C @ 15 psi (Repeated)	121°C (One-time/Limited)	Borosilicate maintains clarity after 100+ sterilization cycles.

Material Purity: Protecting the “Golden” Formula

In the cosmetic industry, the term “Amber Glass” is synonymous with premium quality because it protects “Golden” oils (like Argan, Rosehip, or Vitamin E) which are prone to rancidity.

However, the protection must go deeper than just the color. Some manufacturers use internal coatings to provide chemical resistance; we build the resistance into the glass matrix itself. By maintaining a high concentration of B2O3 (Boric Oxide), the glass surface is naturally unreactive. This is particularly important for alkaline formulations. If a liquid has a pH above 8.0, it can “etch” standard glass, causing it to look cloudy. A borosil reagent bottle resists this alkaline attack significantly longer, preserving the aesthetic clarity of the container for its entire lifecycle.

Optimization for Automated Filling and Labeling

In a B2B export context, bottles must be compatible with high-speed automated lines. Any irregularity in the bottle’s circularity can lead to “label flagging,” where the edge of the label peels off because the glass surface is uneven.

1. Strict Dimensional Tolerances: We maintain a ±0.5 mm tolerance on the body diameter. This ensures that labeling machines apply constant pressure, resulting in a perfectly flat, bubble-free label application.
2. Verticality (Squareness): The “tilt” of the neck relative to the base is kept within 1.0 degree. This is critical for automated filling needles to center perfectly in the GL45 opening without striking the glass sides, which would cause micro-shards to fall into the product.
3. Low Friction Coating: The exterior of our amber glass reagent bottles wholesale is treated with a cold-end polyethylene coating. This acts as a lubricant on the conveyor belt, preventing the bottles from “stalling” or falling over during high-speed transit.

Case Study: Prolonging the Efficacy of Ascorbic Acid

A recent stability study compared Vitamin C (L-Ascorbic Acid) stored in three different environments over 6 months at 25°C.

• Clear Plastic: 45% loss of potency due to oxygen permeation and UV exposure.
• Clear Glass: 30% loss of potency due to UV-induced oxidation.
• Amber Borosilicate Reagent Bottle: <5% loss of potency.

The combination of the absolute oxygen barrier provided by the glass and the 450 nm UV cutoff provided by the amber tint makes it the only viable choice for brands promising “Medical Grade” or “Professional Strength” efficacy.

Frequently Asked Questions (FAQ)

1. Are the pouring rings and caps interchangeable between different sizes?

Yes. As long as the bottles share the same GL45 neck finish (which is standard for sizes from 100ml to 5000ml in our range), the caps and pouring rings are completely interchangeable. This simplifies inventory management for large-scale operations.

2. Can I use these bottles for light-sensitive essential oils with high terpene content?

Absolutely. Terpenes can act as solvents that degrade many plastics, but they are completely compatible with borosilicate glass. The amber tint is specifically effective at blocking the wavelengths that cause essential oils to turn “sour” or lose their therapeutic properties.

3. Does the amber color fade over time with repeated autoclaving?

No. Because the color is part of the chemical structure of the glass itself (not a coating), it will never fade, peel, or leach out, even after hundreds of high-temperature sterilization cycles or exposure to harsh cleaning chemicals.

4. What is the benefit of the GL45 thread over a standard screw neck?

The GL45 thread is a “truncated” thread designed specifically for laboratory use. It provides a much stronger mechanical grip and accommodates thicker liners, which is essential for maintaining an airtight seal during the pressure changes of international shipping.
