Why Pharmaceutical Vials Leak During Sterilization and How Type I Borosilicate Glass Prevents Failure

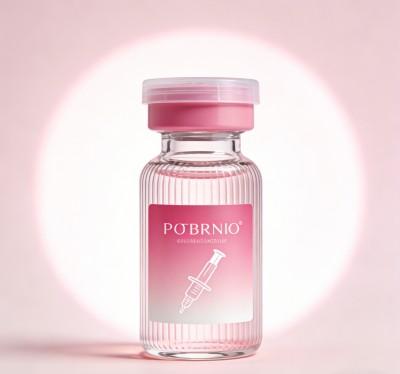

Pharmaceutical vials leak and crack during thermal sterilization because inferior soda-lime glass compositions and weak bottom-form profiles fail to handle extreme autoclave pressure changes. Precision-formed Type I borosilicate glass 10ml glass vial injection bottle assemblies paired with elastomer stoppers and aluminum flip-off seals provide absolute thermal and structural stability, preventing contamination during high-heat processing.

The Thermal Dynamics of Autoclave Failure in Glass Vials

Sterilizing injectable solutions, peptides, and laboratory reagents requires exposing containers to rigorous thermal and barometric stress inside industrial autoclaves or dry-heat ovens. When heat energy transfers rapidly through container walls, the physical properties of inferior glass compositions create severe mechanical vulnerabilities.

• Thermal Expansion Mismatch and Wall Stress: When thermal energy heats standard container glass too quickly, uneven expansion gradients generate internal shear forces that crack fragile base corners and weaken vertical walls.
• Autoclave Pressure Shock and Stopper Pop-Out: During the rapid decompression phase of a sterilization cycle, high pressure inside the container headspace pushes against rubber stoppers. If the glass finish lacks uniform dimensional tolerance, stoppers lift slightly, allowing contaminated steam or water droplets to enter the sterile chamber.
• Hydrolytic Surface Leaching at High Heat: Prolonged exposure to high-temperature steam causes low-grade glass to leach alkaline ions into liquid formulations. This chemical reaction shifts the pH balance of sensitive injectable solutions and compromises container integrity.

Vial Performance Comparison Under Sterilization Stress

Selecting reliable packaging for sensitive pharmaceutical and laboratory applications requires evaluating how different container materials withstand thermal shock and pressure cycles. The comparative table below outlines common sterilization failure modes alongside precision engineering solutions.

Failure Mode	Root Cause	Thermal / Pressure Mechanism	Precision Packaging Solution
Autoclave Base Cracking	Uneven wall thickness in low-grade soda-lime glass	Thermal expansion gradients exceed the tensile strength of the glass base	Uniform heavy-base Type I borosilicate glass 10ml injection bottle design
Steam Ingress and Contamination	Loose crimp tolerance and deformed glass neck finishes	Pressure shifts during decompression force stoppers upward	Precision-machined 20mm crimp finish paired with high-retention aluminum seals
pH Shift via Alkali Leaching	High sodium content in non-borosilicate glass formulations	Steam accelerates ion exchange between glass wall and liquid matrix	Low-expansion expansion coefficient 3.3 borosilicate glass matrix
Freeze-Thaw Structural Fracture	High water absorption along micro-surface fissures	Ice expansion inside micro-defects shatters container walls	Non-porous, smooth-bore internal glass wall geometry

Analytical Performance and Thermal Resistance Metrics

Achieving complete sterility and safeguarding liquid contents requires strict manufacturing control over thermal shock resistance and hydrolytic class standards. The data below evaluates standard economy vials against precision-engineered glass configurations under standardized testing protocols.

Performance Metric	Standard Soda-Lime Vial	Precision Type I Borosilicate Vial	Testing Protocol / Standard
Thermal Shock Survival Limit	Fractures at Delta-T = 45°C shift	Withstands Delta-T = 140°C shift	ISO 718 Hydrothermal Shock Resistance
Autoclave Sterilization Failure Rate	3.2% units experience micro-fractures	0% structural failure across test cycles	Certified Autoclave Cycle Validation (ISO 175)
Hydrolytic Resistance Class	HGB Class 3 (High alkali leaching)	HGA Class 1 (Maximum chemical inertness)	ISO 4802 Surface Hydrolytic Test
Crimp Seal Pull-Off Retention Force	30 N retention drops after heating	Maintains > 70 N retention force	ASTM F2096 Package Integrity Assay

Structural Architecture of Sterilization-Safe Vials

Protecting sensitive contents during high-heat processing requires an integrated packaging design that unifies glass composition with secure sealing components.

Type I Borosilicate Glass Composition

Advanced production utilizes low-expansion 3.3 borosilicate glass, which contains precise ratios of silica and boron trioxide. This formulation gives each glass injection bottle exceptional resistance to thermal shock, allowing containers to transition rapidly from freezing temperatures to high-heat autoclaves without structural degradation.

Precision Crimp Neck Finishes

The mouth of the container must feature a perfectly uniform flange to hold rubber closures securely in place. Precision grinding and optical inspection ensure that every glass injection bottle matches international standard dimensions, guaranteeing that aluminum crimp seals apply even, downward clamping pressure across all production runs.

Heavy-Bottom Base Reinforcement

During thermal cycling, the base of the container experiences the highest mechanical stress. Engineered packaging incorporates a reinforced, flat-bottom profile that distributes weight evenly, preventing thermal cracking and tipping on automated processing lines.

Scientific Insights on Thermal Sterilization and Packaging

The behavior of pharmaceutical glass containers under extreme thermal and pressure conditions is thoroughly examined in packaging science and sterilization literature. According to research published in the Journal of Pharmaceutical Sciences regarding container closure integrity (CCI) and thermal resistance during terminal sterilization, packaging materials must maintain mechanical stability and chemical inertness to prevent microbial ingress and formulation breakdown. The study highlights that Type I borosilicate glass combined with properly seated elastomeric stoppers provides an absolute barrier against steam and pressure fluctuations, ensuring complete sterility assurance.

To verify mechanical durability and thermal performance under extreme operational conditions, production batches undergo rigorous evaluation:

• Accelerated Autoclave Cycle Trials: Filled sample batches undergo repeated 121°C steam sterilization cycles to confirm that glass walls and stoppers maintain complete structural and seal integrity.
• Hydrolytic Surface Extraction Assays: Containers are subjected to high-heat water extraction testing to verify that alkali leaching remains well below strict pharmaceutical safety limits.

Quality Assurance Checklist for Pharmaceutical Packaging Procurement

To protect your sterile formulations from contamination, cracking, and pressure failures during processing, evaluate your packaging specifications against these essential criteria:

1. Verify Glass Hydrolytic Class: Ensure containers are manufactured exclusively from Type I borosilicate glass to prevent alkali leaching and chemical reactivity.
2. Inspect Crimp Finish Uniformity: Check that container neck flanges feature exact dimensions to secure stoppers and aluminum seals against steam pressure.
3. Confirm Thermal Shock Resistance: Review laboratory test data confirming that sample vials withstand rapid temperature shifts without micro-fracturing.
4. Audit Base Wall Thickness: Choose containers featuring reinforced, uniform base designs to provide maximum stability during high-heat autoclave cycles.
