Why Glass Injection Vials Shatter During Thermal Shocks and How Annealed Borosilicate Ensures Safety

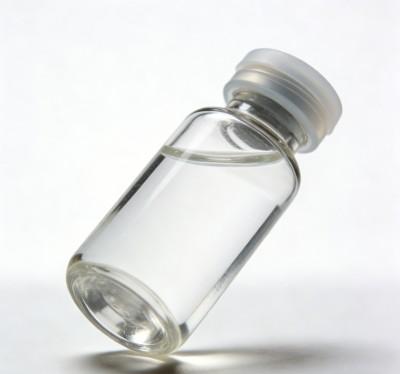

Glass injection vials shatter during severe thermal shocks because rapid, uneven temperature transitions generate high mechanical stress gradients across weak, un-annealed container walls. Precision-annealed Type I borosilicate glass 10ml glass vial injection bottle assemblies feature optimized thermal expansion coefficients and uniform wall profiles, absorbing sudden temperature swings without structural failure.

The Physics of Thermal Shock and Glass Failure

Pharmaceutical and laboratory solutions frequently undergo extreme thermal processing, ranging from hot steam sterilization to ultra-cold storage. When a glass container experiences a sudden temperature shift (Delta-T), the outer surface expands or contracts at a different rate than the inner core, creating powerful internal shear forces.

• Uneven Thermal Expansion Gradients: In low-grade or poorly annealed glass, sudden heat transfer causes localized expansion. If the structural matrix cannot distribute this thermal energy, internal tension exceeds the material’s tensile strength, resulting in immediate cracking.
• Micro-Fissure Propagation: Minor surface scratches or microscopic molding defects act as stress concentration points. When thermal shock occurs, these microscopic flaws widen rapidly, causing the entire container wall or base to fracture.
• Residual Mechanical Stress: Without proper thermal annealing in manufacturing lehrs, glass retains internal cooling stresses. When subjected to subsequent heating or freezing cycles, these trapped stresses trigger spontaneous breakage.

Thermal Performance Comparison for Vials

Selecting reliable glass injection bottle packaging requires evaluating how different material compositions handle rapid temperature shifts. The comparative table below outlines common thermal shock failure modes alongside precision engineering solutions.

Failure Mode	Root Cause	Thermal / Physical Mechanism	Precision Packaging Solution
Thermal Shock Shattering	High expansion coefficient in standard soda-lime glass	Rapid temperature shifts create severe internal shear stress gradients	Low-expansion 3.3 borosilicate glass matrix with complete thermal annealing
Base Corner Micro-Cracking	Uneven wall thickness distribution in cheap vials	Thermal energy concentrates at sharp internal base angles	Reinforced, uniform heavy-bottom glass geometry
Autoclave Expansion Failure	Poor thermal conductivity and weak structural framing	Steam heat expands container walls faster than the core matrix	Precision-drawn Type I borosilicate with stress-relieved walls
Sub-Zero Freezing Fracture	High water absorption along micro-surface fissures	Extreme cold contraction widens minor structural flaws	Non-porous, smooth-bore internal glass wall integrity

Analytical Performance and Thermal Metrics

Preventing thermal breakage requires strict manufacturing control over expansion coefficients and mechanical strength. The data below evaluates standard economy vials against precision-engineered borosilicate configurations under standardized testing.

Performance Metric	Standard Soda-Lime Vial	Precision Type I Borosilicate Vial	Testing Protocol / Standard
Thermal Shock Survival Limit (Delta-T)	Fractures at 45°C sudden shift	Withstands up to 140°C sudden shift	ISO 718 Hydrothermal Shock Resistance
Autoclave Thermal Failure Rate	3.8% units experience thermal cracking	0% structural failure across test cycles	Certified Autoclave Cycle Validation
Mean Flexural Strength	Lower tensile threshold under thermal load	> 95 MPa flexural resistance	3-Point Bending Flexural Strength Test
Hydrolytic Resistance Class	HGB Class 3 (High alkali leaching)	HGA Class 1 (Maximum chemical inertness)	ISO 4802 Surface Hydrolytic Test

Structural Architecture of Thermal-Resistant Vials

Protecting sensitive contents against thermal shock requires an integrated manufacturing design that unifies material purity with precise structural geometry.

+-------------------------------------------------------------------------+
|                  Thermal-Resistant Vial Architecture                    |
+-------------------------------------------------------------------------+
|                                                                         |
|   [ Precision-Machined 20mm Crimp Neck Finish ]                         |
|        ||                                                               |
|        \/                                                               |
|   [ Uniform Type I Borosilicate Sidewalls ]                             |
|        ||                                                               |
|        \/                                                               |
|   [ Stress-Relieved Thermal Annealing Zone ]                            |
|        ||                                                               |
|        \/                                                               |
|   [ Reinforced Flat-Bottom Load Distribution Base ]                     |
|                                                                         |
+-------------------------------------------------------------------------+

Low-Expansion 3.3 Borosilicate Composition

Advanced glass production incorporates precise ratios of silica and boron trioxide, creating a material matrix with a remarkably low thermal expansion coefficient. This ensures the glass injection bottle expands minimally when exposed to sudden heat, preventing structural fracture.

Controlled Thermal Annealing Lehrs

During manufacturing, every glass injection bottle passes through specialized annealing ovens where controlled cooling eliminates internal mechanical stresses, ensuring the container can handle extreme temperature transitions safely.

Reinforced Base and Uniform Wall Profiles

Because thermal stress often concentrates at the bottom of a container, engineered packaging features a reinforced, uniform base profile that distributes thermal energy evenly across the entire surface area.

Scientific Insights on Thermal Stress and Packaging Integrity

The behavior of pharmaceutical glass under severe thermal loads is extensively documented in materials science and packaging literature. According to research published in the Journal of Materials Science regarding thermal shock resistance and stress distribution in silicate glasses, material composition and thermal history dictate structural survival during rapid temperature shifts. The study emphasizes that low-expansion borosilicate formulations combined with complete thermal annealing elevate the critical stress threshold, preventing crack initiation and ensuring absolute safety during thermal sterilization.

To verify mechanical durability under operational conditions, production batches undergo rigorous evaluation:

• Rapid Thermal Shock Immersion Trials: Filled sample batches are transferred directly from boiling water baths into ice-water baths to confirm that glass walls withstand extreme Delta-T shifts without micro-fracturing.
• Certified Hydrolytic Resistance Assays: Containers are subjected to high-heat extraction testing to verify that thermal processing does not compromise chemical inertness or surface integrity.

Quality Assurance Checklist for Thermal-Resistant Packaging

To protect your products from thermal shock breakage, fluid contamination, and processing failures, evaluate your packaging specifications against these essential criteria:

1. Verify Borosilicate Purity: Ensure containers are manufactured exclusively from Type I borosilicate glass to guarantee low thermal expansion.
2. Inspect Annealing Documentation: Partner with manufacturers who utilize strict thermal annealing processes to eliminate internal mechanical stresses.
3. Confirm Thermal Shock Test Data: Review laboratory test reports proving sample vials withstand rapid temperature shifts beyond 100°C.
4. Audit Base Wall Uniformity: Choose containers featuring reinforced, uniform base designs to prevent stress concentration during heating and cooling cycles.
