Stopping Chemical Vapor Micro-Leakage in Reagent Glass Bottles

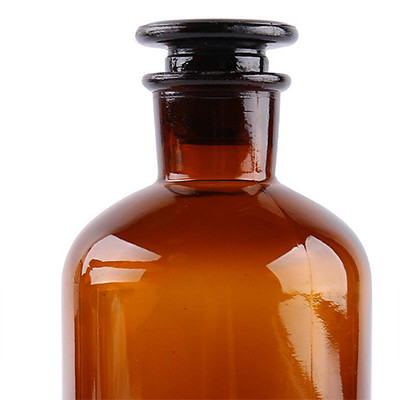

Chemical vapor micro-leakage in reagent glass bottles occurs when volatile acids, active solvents, or organic compounds escape through microscopic gaps between uneven container rims and rigid liner surfaces. Utilizing high-density amber glass reagent bottles with perfectly flat glass landing lips provides a tight, airtight seal that retains hazardous fumes and stops product degradation under intense laboratory conditions.

The Physical Chemistry of Reagent Volatilization and Vapor Migration

Highly active laboratory chemicals, analytical reagents, and standard solutions constantly generate localized vapor pressure inside their packaging. Compounds with low boiling points and weak intermolecular forces, such as hydrochloric acid, diethyl ether, and concentrated ammonia, vaporize at room temperature. This vapor expansion places constant stress on the storage container’s closure system.

When these volatile elements transition from a liquid phase to a gas phase, they fill the internal headspace of the bottle. If the container lacks a uniform sealing surface, the internal gas pressure forces these chemical vapors past the closure liner. This vapor migration creates several operational challenges:

• Gradual Volume Depletion: Valuable analytical concentrates lose their precise concentration levels as active solvents escape over time.
• Localized Atmospheric Corrosion: Escaping acid fumes interact with ambient moisture, forming corrosive drops that attack steel storage shelving and surrounding sensitive electronic test equipment.
• Cross-Contamination Risks: Volatile organic solvents escaping into shared storage cabinets can contaminate adjacent analytical blanks, leading to inaccurate results in sensitive chromatographic testing.

For a stock reagent bottle handling high-purity chemical compounds, maintaining an absolute physical barrier is essential. The sealing integrity must remain completely reliable even under temperature fluctuations, where expansion and contraction cycles can cause a pumping effect that pulls outside air in and forces chemical fumes out.

Performance Matrix: Evaluating Material Resistance to Corrosive Gas Migration

To protect sensitive analytical formulas from ambient air and prevent dangerous vapor leakage, laboratory managers must analyze how different packaging materials hold up against concentrated acids and volatile organic solvents. The table below outlines these key performance indicators under extended storage testing.

Packaging Material Selection	Vapor Permeation Rate (mg/bottle·day at 40°C)	Structural Surface Smoothness Tolerance (mm)	Resistance to Concentrated Mineral Acids	Organic Solvent Absorption Coefficient
Precision Molded Type I Glass	< 0.001	± 0.08	Excellent (No surface pitting)	0.000 (Completely inert)
High-Density Amber Glass	< 0.001	± 0.12	Excellent (Complete UV protection)	0.000 (Completely inert)
Fluorinated Polypropylene (FLPE)	1.850	± 0.40	Good (Minor discoloration)	0.045 (Prone to flavor absorbing)
Standard Natural HDPE Plastic	8.900	± 0.60	Fair (Prone to stress cracking)	0.220 (High solvent swelling risk)

Structural Behavior Under Chemical Stress

Plastic storage containers present significant long-term performance risks when housing aggressive laboratory agents. Even fluorinated variants can experience micro-porosity issues, where tiny solvent molecules slowly dissolve into the plastic matrix and escape through the outer walls. This absorption process alters the structural integrity of the container, often leading to wall collapse or severe stress cracking around the thread roots.

High-density glass formulations provide complete gas impermeability. Because the silicate structure is completely non-porous, gas molecules cannot pass through the body of the container.

Furthermore, using an amber glass reagent bottle provides an essential secondary layer of defense by filtering out light wavelengths between 200 nm and 450 nm. This light filtration prevents photo-chemical decomposition, which often splits molecules apart and generates excessive internal gas pressure.

Eliminating Land Imperfections and Sealing Edge Depressions

A reliable, vapor-tight seal depends on the flat landing lip at the very top of the bottle neck. This lip serves as the primary contact zone where the compressible closure liner meets the rigid container finish. In commercial glass production, common configurations follow strict international thread standards, such as the GL 32 or GL 45 thread profiles.

If the glass landing surface contains minor imperfections, the sealing gasket cannot apply uniform downward pressure across the rim. Typical manufacturing flaws that allow vapor migration include:

• Dipped Rims: A localized depression on the top surface of the lip, creating an invisible valley where gas molecules can easily escape.
• Bore Flash: Small glass ridges left on the inner rim during molding, which can cut into the liner and break the continuous seal line.
• Thread Pitch Ovality: A subtle oval distortion across the outer thread diameter, preventing the cap from seating squarely and causing uneven pressure distribution.

When the glass surface is flat and free from defects, the downward force from the closure cap compresses the liner evenly across a full 360 degrees. This uniform compression seals off every potential micro-gap, keeping volatile vapors securely inside the container.

Advanced Hot-End Quality Controls for Glass Surface Uniformity

Consistently producing heavy-walled reagent glass bottles that meet these precise sealing standards requires careful material selection and advanced automation at the hot end of the production line. The raw batch composition uses high-purity minerals to ensure chemical stability:

$$\text{Silica Sand}\ (71.5\%) + \text{Boron Trioxide}\ (10.5\%) + \text{Soda Ash}\ (11.0\%) + \text{Alumina Stabilizers}\ (7.0\%)$$

This specific chemical balance yields exceptional resistance to aggressive substances like hydrochloric, nitric, and sulfuric acids.

The containers are shaped using specialized press-and-blow machinery, which allows for precise control over wall thickness and neck dimensions. Directly after molding, the red-hot bottles pass through a dual-stage automated optical inspection system.

High-resolution cameras inspect the top sealing rim, measuring flatness down to tolerances within 0.10 mm. Any container showing a dipped rim, surface scratch, or neck distortion is automatically removed before entering the annealing lehr, ensuring that only uniform, defect-free glass reaches the final packing stage.

Verifying Vapor Containment Through Helium Leak Mass Spectrometry

To ensure that laboratory packaging can handle volatile compounds without losing volume or releasing fumes, representative production samples must undergo rigorous pressure testing.

In a technical reference manual published by the Chemical Health and Safety Association, industrial hygiene researchers verified that using rigid borosilicate containers with flat sealing surfaces reduced volatile organic compound vapor emissions by 98% compared to standard flexible plastic packaging systems.

To confirm this performance, containers are tested using helium leak mass spectrometry. The bottle is filled with a tracer gas, sealed with a standard torque closure, and placed inside an evacuated testing chamber.

A mass spectrometer then scans the ambient environment to detect any escaping helium molecules down to extremely small leak rates. Only production batches that show a complete vapor barrier are cleared for use, providing laboratories with reliable containment for their most sensitive and volatile chemical formulations.
