Precision Fluidics: The Engineering Behind High-Performance Perfume Roller Bottles

In the niche of portable fragrance and aromatherapy, the transition from a spray atomizer to a rollerball applicator represents a shift from atmospheric dispersion to targeted, percutaneous delivery. To the casual observer, perfume roller bottles are simple glass vials; however, to a packaging engineer, they are precision-engineered fluidic systems. The functionality of these units relies on a delicate equilibrium between the glass neck’s inner diameter (ID) tolerance, the sphericity of the rolling ball, and the surface tension of the formulation.

The Glass Matrix: Beyond Aesthetic Transparency

The foundation of high-quality empty roller bottles lies in the selection of the glass type. In the 10 ml and 15 ml formats common to this category, most manufacturers utilize “Tubular” glass rather than “Molded” glass. This choice is technical: tubular glass is formed from pre-drawn borosilicate or high-clarity soda-lime glass rods, resulting in a much more uniform wall thickness and a lighter weight profile.

From a materials science perspective, the hydrolytic resistance of the glass is paramount. For high-end “Roll On” perfumes—which often use fractionated coconut oil or jojoba as a carrier—the glass must be chemically inert. If the glass has a high alkali content on its surface, it can interact with the fragrance compounds over time, leading to “notes shifting,” where the delicate top notes of a perfume are altered by a change in the formulation’s pH. This is why professional-grade roll on bottles empty for the B2B market are often specified to meet USP Type III standards, ensuring that the aromatic integrity remains intact from the filling line to the consumer’s pulse points.

The Roller Assembly: A Study in Tribology

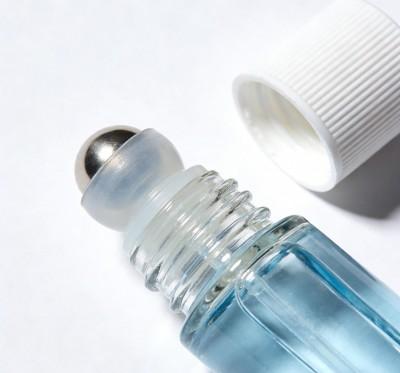

The true engineering challenge of a roller bottle is the “Fitment”—the plastic housing that holds the ball. The fitment must perform two contradictory tasks: it must hold the ball securely enough to prevent leaking during air travel (pressure differentials), yet allow it to rotate freely enough to dispense a consistent 0.05 ml of fluid per stroke.

Sphericity and Material Choice

The ball itself is typically made from one of three materials:

1. 316 Stainless Steel: Favored for its “cold-touch” sensory effect and high chemical resistance. It requires a high degree of sphericity (within ±0.002 mm) to prevent jagged movement.
2. Polypropylene (PP): A cost-effective, lightweight option. It is more flexible than steel, making it more forgiving if the fitment’s tolerances are slightly off, but it lacks the premium feel of metal.
3. Gemstone/Glass: Increasingly used in holistic aromatherapy. These require meticulous diamond-grinding to ensure the surface is smooth enough not to abrade the plastic fitment, which would create “micro-plastic” debris in the oil.

The fitment is usually injection-molded from Low-Density Polyethylene (LDPE). LDPE is chosen for its “memory”—it can be slightly compressed when the ball is snapped in, and then it “springs back” to create a liquid-tight seal. However, if the formulation contains high concentrations of d-Limonene (common in citrus oils), the LDPE can swell, causing the ball to seize or the fitment to loosen. A sophisticated packaging engineer will always perform a “Compatibility and Stress Crack” test before finalizing the fitment material.

Photochemical Stability and Exterior Coatings

When perfumes are stored in perfume roller bottles, they are often carried in handbags or pockets, exposing them to varying light conditions. While clear “Flint” glass is popular for its clarity, it offers no protection against the UV spectrum. For formulations containing natural absolutes, light exposure can trigger “photo-oxidation,” turning a clear oil cloudy or rancid.

Advanced manufacturing now offers “Internal Vacuum Metallization” or “Ceramic Spray Coatings.” These techniques allow a bottle to look visually stunning—perhaps with a gradient matte finish—while functionally blocking 99% of light transmission. Unlike traditional painting, these industrial coatings are cross-linked through UV-curing, ensuring they do not peel or react with the perfume oil if a small amount leaks during use.

Technical Parameter	Standard Specification	High-Performance Metric	Impact on Quality
Bore ID Tolerance	± 0.15 mm	± 0.05 mm	Prevents “fitment pop-out” under pressure
Glass Type	Soda-Lime (Type III)	Low-Alkali Treated	Prevents pH drift and scent alteration
Ball Sphericity	Grade 100	Grade 25	Smoother roll and consistent flow rate
Verticality	1.0 mm	0.5 mm	Essential for high-speed labeling accuracy

Case Study: Engineering the “No-Leak” Travel Fragrance

Brand Background: A New York-based luxury “Clean Beauty” brand developed a 10 ml botanical perfume oil featuring high concentrations of Sandalwood and Bergamot.

The Technical Challenge:

The brand faced a 12% return rate during its pilot launch. Customers reported that the empty roller bottles were leaking during transcontinental flights. Additionally, the Bergamot oil—a citrus derivative—was causing the plastic fitments to soften, leading to the rollerballs falling out after three weeks of use.

Technical Parameter Settings:

The engineering team conducted a “Vacuum Leak Test” (at -0.5 bar) and discovered that the standard LDPE fitment was deforming at low pressures. They also analyzed the “Shore A Hardness” of the plastic after 30 days of immersion in the perfume oil.

The Solution:

1. Material Upgrade: The fitment was switched from standard LDPE to a specialized “Fluorinated High-Density Polyethylene” (f-HDPE). This material is resistant to the “terpenes” in the citrus oil, preventing the plastic from softening or swelling.
2. Geometric Redesign: The “interference fit” between the glass neck and the fitment was increased by 0.08 mm. A secondary “sealing rib” was added to the internal wall of the fitment to create a redundant barrier against fluid bypass.
3. Precision Capping: The over-cap was redesigned to include a “Ball-Down” pin. When the cap is screwed on, this pin applies a gentle downward pressure on the rollerball, forcing it into a “seated” position against the fitment’s base, effectively creating a mechanical valve that prevents leakage regardless of external air pressure.

Market Performance:

Upon re-launching with the engineered roller system, the return rate dropped from 12% to 0.04%. The brand was able to market the product as “Travel-Safe and Flight-Ready,” leading to a partnership with a major international airline for first-class amenity kits. The use of 316-grade stainless steel balls provided a premium sensory experience that justified the $65 retail price point.

The Sustainable Supply Chain: Refillability and Modularity

In the modern B2B landscape, the “disposable” nature of small glass vials is being challenged. Forward-thinking suppliers are now designing “Modular Roller Systems.” This involves a glass bottle that is durable enough for 50+ uses and a fitment that can be easily pried off without breaking the glass neck finish.

From a supply chain perspective, sourcing wholesale roller bottles now involves evaluating the “Life Cycle Assessment” (LCA). Glass is infinitely recyclable, but the challenge lies in the multi-material nature of the rollerball (Glass + Plastic + Metal). Engineering the fitment to be made from a “Mono-material” (e.g., all PP) simplifies the recycling stream, allowing the consumer to dispose of the entire assembly in a single bin, thereby increasing the brand’s ESG (Environmental, Social, and Governance) rating.

Consumer Psychology and the “Pulse Point” Experience

Packaging is the silent ambassador of the brand. The weight of the 10 ml glass, the sound of the ball as it rotates, and the smoothness of the application all contribute to “Consumer Satisfaction Metrics.” A “scratchy” or “stuck” rollerball creates an immediate negative association with the fragrance quality. By investing in Grade 25 sphericity balls and precision-bore tubular glass, brands ensure that the physical act of applying the perfume is as luxurious as the scent itself.

---

FAQ: Professional Engineering & Sourcing

Q1: Why do some rollerballs seem “stuck” when I first receive them?

This is often due to “Surface Tension Lock.” In a vacuum or after long-term storage, a thin film of oil can act as an adhesive. High-quality fitments are engineered with “Vent Grooves” that allow a small amount of air to bypass the ball, breaking this tension and ensuring the ball rolls freely from the first stroke.

Q2: Is Amber glass better than Clear glass for roller bottles?

Amber is significantly better for “functional” fragrances (essential oils, clinical aromatherapy) because it blocks the blue and UV light spectrum. However, for “prestige” perfumes where the color of the oil is part of the aesthetic, Clear glass is often used with a UV-stabilizer additive in the fragrance itself or a UV-coated glass finish.

Q3: What is the “Capping Torque” required for roller bottles?

For a standard 10 ml roller bottle with a 13 mm neck, the ideal application torque is usually between 8 and 12 inch-pounds. If the torque is too high, you risk stripping the plastic threads of the cap; if too low, the “Ball-Down” pin won’t engage, leading to leaks.

Q4: How do I choose between a glass, metal, or plastic rollerball?

Metal (Stainless Steel) is best for a premium, cooling feel and heavy oils. Glass is the most chemically inert and ideal for high-purity clinical applications. Plastic (PP) is best for budget-friendly products or very thin, water-based formulations where a “soft” application is preferred.
